5.1 Overview

As mentioned previously the framework makes use of the inheritance mechanism for specialising the Algorithm component. In other words, a concrete algorithm class must inherit from ("be derived from" in C++ parlance, "extend" in Java) the Algorithm base class.

In this chapter we first look at the base class itself. We then discuss what is involved in creating concrete algorithms: specifically how to declare properties, what to put into the methods of the IAlgorithm interface, the use of private objects and how to nest algorithms. Finally we look at how to set up sequences of algorithms and how to control processing through the use of branches and filters.

5.2 Algorithm base class

Since a concrete algorithm object is-an Algorithm object it may use all of the public and protected methods of the Algorithm base class. The base class has no protected or public data members, so in fact, these are the only methods that are available. Most of these methods are provided solely to make the implementation of derived algorithms easier. The base class has two main responsibilities: the initialization of certain internal pointers and the management of the properties of derived algorithm classes.

A part of the Algorithm base class definition is shown in Listing 5.1. Include directives, forward declarations and private member variables have all been suppressed. It declares a constructor and destructor; some methods of the IAlgorithm interface; several accessors to services that a concrete algorithm will almost certainly require; a method to create a sub algorithm, the two methods of the IProperty interface; and a whole series of methods for declaring properties.
Listing 5.1 The definition of the Algorithm base class.
1: class Algorithm : virtual public IAlgorithm,
virtual public IProperty {
2: public:
3: // Constructor and destructor
4: Algorithm( const std::string& name, ISvcLocator *svcloc );
5: virtual ~Algorithm();
6:
7: // IAlgorithm interface only partially implemented
8: StatusCode sysInitialize();
9: StatusCode sysExecute();
10: StatusCode sysFinalize();
11: StatusCode beginRun();
12: StatusCode endRun();
13: const std::string&  name() const;
14:
15: virtual bool isExecuted() const;
16: virtual StatusCode setExecuted( bool state );
17: virtual StatusCode resetExecuted();
18: virtual bool isEnabled() const;
19: virtual bool filterPassed() const;
20: virtual StatusCode setFilterPassed( bool state );
21:
22: // Service accessors
23: template<class T> StatusCode service( const std::string& name, T*& svc, bool createIf = false );
24: void setOutputLevel( int level );
25: IMessageSvc*   msgSvc() const;
26: IAuditorSvc* auditorSvc() const;
27: IDataProviderSvc*   eventSvc() const;
28: IConversionSvc*     eventCnvSvc() const;
29: IDataProviderSvc*   detSvc() const;
30: IConversionSvc*     detCnvSvc() const;
31: IHistogramSvc*      histoSvc() const;
32: INtupleSvc*         ntupleSvc() const;
33: IChronoStatSvc*     chronoSvc() const;
34: IRndmGenSvc*        randSvc() const;
35: IToolSvc* toolSvc() const;
36: ISvcLocator*    serviceLocator() const;
37:
38: StatusCode createSubAlgorithm( const std::string& type,
const std::string& name, Algorithm*& pSubAlg );
39: std::vector<Algorithm*>* subAlgorithms() const;
40:
41: // IProperty interface
42: virtual StatusCode setProperty( const Property& p);
43: virtual StatusCode setProperty( std::istream s& );
44: virtual StatusCode setProperty( const std::string& n,
const std::string& v);
45: virtual StatusCode getProperty( Property* p ) const;
46: const Property& getProperty( const std::string& name) const;
47: virtual StatusCode getProperty( const std::string& n,
std::string& v) const;
48: const std::vector<Property*>& getProperties() const;
49: StatusCode setProperties();
50: template <class T>
StatusCode declareProperty(const std::string& name, T& property);
51: StatusCode declareRemoteProperty(const std::string& name,
IProperty* rsvc, const std::string& rname = "") const;
52: /// Methods for IInterface
53: unsigned long addRef();
54: unsigned long release();
55: StatusCode queryInterface(const IID& riid, void**);
56:
57: protected:
58: bool isInitialized( ) const;
59: void setInitialized( );
60: bool isFinalized( ) const;
61: void setFinalized( );
62: private:
63: // Data members not shown
64: Algorithm(const Algorithm& a);   // NO COPY ALLOWED
65: Algorithm& operator=(const Algorithm& rhs); // NO ASSIGNMENT ALLOWED};

Constructor and Destructor
The base class has a single constructor which takes two arguments: The first is the name that will identify the algorithm object being instantiated and the second is a pointer to one of the interfaces implemented by the application manager: ISvcLocator. This interface may be used to request special services that an algorithm may wish to use, but which are not available via the standard accessor methods (below).
The IAlgorithm interface
The base class only partially implements this interface: the three pure virtual methods initialize(), execute() and finalize() must be implemented by a derived algorithm: these are where the algorithm does its useful work and are discussed in more detail in section 5.3. The base class provides default implementations of the methods beginRun() and endRun(), and the accessor name() which returns the algorithm's identifying name. The methods sysInitialize(), sysFinalize(), sysExecute() are used internally by the framework; they are not virtual and may not be overridden.
Service accessor methods
Lines 25 to 35 declare accessor methods which return pointers to key service interfaces. These methods are available for use only after the Algorithm base class has been initialized, i.e. they may not be used from within a concrete algorithm constructor, but may be used from within the initialize() method (see Section 5.3.3). The services and interface types to which they point are self explanatory. Services may be located by name using the templated service() function in line 23 or by using the serviceLocator() accessor method on line 36, as described in Section 11.2. Line 24 declares a facility to modify the message output level from within the code (the message service is described in Section 11.4).
Creation of sub algorithms
The methods on lines 38 to 39 are intended to be used by a derived class to manage sub-algorithms, as discussed in section 5.4.
Declaration and setting of properties
A concrete algorithm must declare its properties to the framework using the templated declareProperty method (line 50), as discussed in Section 5.3.2 and Section 11.3.1. The Algorithm base class then uses the setProperties() method (line 49) to tell the framework to set these properties to the values defined in the job options file. The methods in lines 42 to 48 can later be used to access and modify the values of specific properties, as explained in Section 11.3.2.
Filtering
The methods in lines 14 to 19 are used by sequencers and filters to access the state of the algorithm, as discussed in Section 5.5.
5.3 Derived algorithm classes

In order for an algorithm object to do anything useful it must be specialised, i.e. it must extend (inherit from, be derived from) the Algorithm base class. In general it will be necessary to implement the methods of the IAlgorithm interface, and declare the algorithm's properties to the property management machinery of the Algorithm base class. Additionally there is one non-obvious technical matter to cover, namely algorithm factories.

5.3.1 Creation (and algorithm factories)

A concrete algorithm class must specify a single constructor with the same parameter signature as the constructor of the base class.

In addition to this, a concrete algorithm factory must be provided. This is a technical matter which permits the application manager to create new algorithm objects without having to include all of the concrete algorithm header files. From the point of view of an algorithm developer it implies adding three lines into the implementation file, of the form:
#include "GaudiKernel/AlgFactory.h"
...
static const AlgFactory<ConcreteAlgorithm> s_factory;
const IAlgFactory& ConcreteAlgorithmFactory = s_factory;

where "ConcreteAlgorithm" should be replaced by the name of the derived algorithm class (see for example lines 10 and 11 in Listing 5.2 below).

5.3.2 Declaring properties

In general, a concrete algorithm class will have several data members which are used in the execution of the algorithm proper. These data members should of course be initialized in the constructor, but if this was the only mechanism available to set their value it would be necessary to recompile the code every time you wanted to run with different settings. In order to avoid this, the framework provides a mechanism for setting the values of member variables at run time.

The mechanism comes in two parts: the declaration of properties and the setting of their values. As an example consider the class TriggerDecision in Listing 5.2 which has a number of variables whose value we would like to set at run time.
Listing 5.2 Declaring member variables as properties.
1: //------- In the header file --------------------------------------//
2: class TriggerDecision : public Algorithm {
3:
4: private:
5:   bool m_passAllMode;
6:   int m_muonCandidateCut;
7:   std::vector m_ECALEnergyCuts;
8: }
9: //------- In the implementation file -------------------------------//
10: static const AlgFactory<TriggerDecision> s_factory;
11: const IAlgFactory& TriggerDecisionFactory = s_factory;
12:
13: TriggerDecision::TriggerDecision(std::string name, ISvcLocator *pSL) :
14:   Algorithm(name, pSL), m_passAllMode(false), m_muonCandidateCut(0) {
15:   m_ECALenergyCuts.push_back(0.0);
16:   m_ECALenergyCuts.push_back(0.6);
17:
18:   declareProperty("PassAllMode", m_passAllMode);
19:   declareProperty("MuonCandidateCut", m_muonCandidateCut);
20:   declareProperty("ECALEnergyCuts", m_ECALEnergyCuts);
21: }
22:
23: StatusCode TriggerDecision::initialize() {
24: }

The default values for the variables are set within the constructor (within an initialiser list). To declare them as properties it suffices to call the declareProperty() method. This method is templated to take an std::string as the first parameter and a variety of different types for the second parameter. The first parameter is the name by which this member variable shall be referred to, and the second parameter is a reference to the member variable itself.

In the example we associate the name "PassAllMode" to the member variable m_passAllMode, and the name "MuonCandidateCut" to m_muonCandidateCut. The first is of type boolean and the second an integer. If the job options service (described in Section 11.3 on page 113) finds an option in the job options file belonging to this algorithm and whose name matches one of the names associated with a member variable, then that member variable will be set to the value specified in the job options file.

5.3.3 Implementing IAlgorithm

Any concrete algorithm must implement the three pure virtual methods initialize(), execute() and finalize() of the IAlgorithm interface. For a top level algorithm, i.e. one controlled directly by the application manager, the methods are invoked as is described in section 4.6. This dictates what it is useful to put into each of the methods.

Initialization

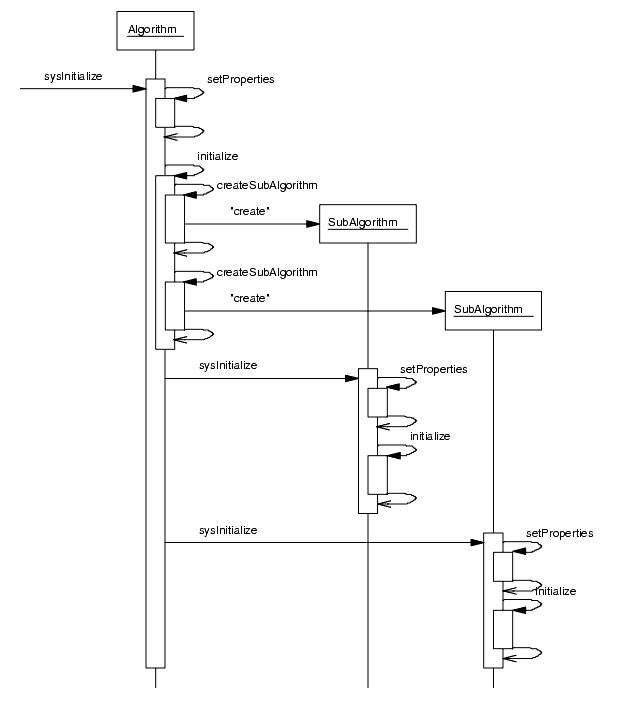

Figure 5.1 shows an example trace of the initialization phase.
Figure 5.1 Algorithm initialization.
In a standard job the application manager will initialize all top level algorithms exactly once before reading any event data. It does this by invoking the sysInitialize() method of each top-level algorithm in turn, in which the framework takes care of setting up internal references to standard services and to set the algorithm properties (using the mechanism described in Section 11.3.1 on page 113). At the end, sysInitialize() calls the initialize() method, which can be used to do such things as creating histograms, or creating sub-algorithms if required (sub-algorithms are discussed in Section 5.4). If an algorithm fails to initialize it should return StatusCode::FAILURE. This will cause the job to terminate.

Execution

The guts of the algorithm class is in the execute() method. For top level algorithms this will be called once per event for each algorithm object in the order in which they were declared to the application manager. For sub-algorithms (Section 5.4) the control flow may be as you like: you may call the execute() method once, many times or not at all.

Just because an algorithm derives from the Algorithm base class does not mean that it is limited to using or overriding only the methods defined by the base class. In general, your code will be much better structured (i.e. understandable, maintainable, etc.) if you do not, for example, implement the execute() method as a single block of 100 lines, but instead define your own utility methods and classes to better structure the code.

If an algorithm fails in some manner, e.g. a fit fails to converge, or its data is nonsense it should return from the execute() method with StatusCode::FAILURE. This will cause the application manager to stop processing events and end the job. This default behaviour can be modified by setting the <myAlgorithm>.ErrorMax job option to something greater than 1. In this case a message will be printed, but the job will continue as if there had been no error, and just increment an error count. The job will only stop if the error count reaches the ErrorMax limit set in the job option.

The framework (the Algorithm base class) calls the execute() method within a try/catch clause. This means that any exception not handled in the execution of an Algorithm will be caught at the level of sysExecute() implemented in the base class. The behaviour on these exceptions is identical to that described above for errors.

Finalization

The finalize() method is called at the end of the job. It can be used to analyse statistics, fit histograms, or whatever you like. Similarly to initialization, the framework invokes a sysFinalize() method which in turn invokes the finalize() method of the algorithm and of any sub-algorithms.

Optionally, the methods beginRun() and endRun() can also be implemented. These are called at the beginning and the end of the event loop respectively.

Monitoring of the execution (e.g. cpu usage) of each Algorithm instance is performed by auditors under control of the Auditor service (described in Section 11.7 on page 129). This monitoring can be turned on or off with the boolean properties AuditInitialize, AuditExecute, AuditFinalize.

The following is a list of things to do when implementing an algorithm.

· Derive your algorithm from the Algorithm base class.
· Provide the appropriate constructor and the three methods initialize(), execute() and finalize().
· Make sure you have implemented a factory by adding the magic two lines of code (see Section 5.3.1).
5.4 Nesting algorithms

The application manager is responsible for initializing, executing once per event, and finalizing the set of top level algorithms, i.e. the set of algorithms specified in the job options file. However such a simple linear structure is very limiting. You may wish to execute some algorithms only for specific types of event, or you may wish to "loop" over an algorithm's execute method. Within the Gaudi application framework the way to have such control is via the nesting of algorithms or through algorithm sequences (described in section 5.5). A nested (or sub-) algorithm is one which is created by, and thus belongs to and is controlled by, another algorithm (its parent) as opposed to the application manager. In this section we discuss a number of points which are specific to sub-algorithms.

In the first place, the parent algorithm will need a member variable of type Algorithm* (see the code fragment below) in which to store a pointer to the sub-algorithm.
Algorithm* m_pSubAlgorithm;   // Pointer to the sub algorithm
                              // Must be a member variable of the parent class
std::string type;             // Type of sub algorithm
std::string name;             // Name to be given to subAlgorithm
StatusCode sc;                // Status code returned by the call
sc = createSubAlgorithm(type, name, Algorithm*& m_pSubAlgorithm);

The sub-algorithm itself is created by invoking the createSubAlgorithm() method of the Algorithm base class. The parameters passed are the type of the algorithm, its name and a reference to the pointer which will be set to point to the newly created sub-algorithm. Note that the name passed into the createSubAlgorithm() method is the same name that should be used within the job options file for specifying algorithm properties.

The algorithm type (i.e. class name) string is used by the application manager to decide which factory should create the algorithm object.

The execution of the sub-algorithm is entirely the responsibility of the parent algorithm whereas the initialize() and finalize() methods are invoked automatically by the framework as shown in Figure 5.1. Similarly the properties of a sub-algorithm are also automatically set by the framework.

Note that the createSubAlgorithm() method returns a pointer to an Algorithm object, not an IAlgorithm interface. This means that you have access to the methods of both the IAlgorithm and IProperty interfaces, and consequently as well as being able to call execute() etc. you may also change the properties of a sub-algorithm during the main event loop as explained in Section 11.3.2. Note also that the vector of pointers to the sub-algorithms is available via the subAlgorithms() method.

5.5 Algorithm sequences, branches and filters

A physics application may wish to execute different algorithms depending on the physics signature of each event, which might be determined at run-time as a result of some reconstruction. This capability is supported in Gaudi through sequences, branches and filters. A sequence is a list of Algorithms. Each Algorithm may make a filter decision, based on some characteristics of the event, which can either allow or bypass processing of the downstream algorithms in the sequence. The filter decision may also cause a branch whereby a different downstream sequence of Algorithms will be executed for events that pass the filter decision relative to those that fail it. Eventually the particular set of sequences, filters and branches might be used to determine which of multiple output destinations each event is written to (if at all). This capability is not yet implemented but is planned for a future release of Gaudi.

A Sequencer class is available in the GaudiAlg package which manages algorithm sequences using filtering and branching protocols which are implemented in the Algorithm class itself. The list of Algorithms in a Sequencer is specified through the Members property. Algorithms can call setFilterPassed( true/false ) during their execute() function. Algorithms in the membership list downstream of one that sets this flag to false will not be executed, unless the StopOverride property of the Sequencer has been set, or the filtering algorithm itself is of type Sequencer and its BranchMembers property specifies a branch with downstream members. Please note that, if a sub-algorithm is of type Sequencer, the parent algorithm must call the resetExecuted() method of the sub-algorithm before calling the execute() method, otherwise the sequence will only be executed once in the lifetime of the job!

An algorithm instance is executed only once per event, even if it appears in multiple sequences. It may also be enabled or disabled, being enabled by default. This is controlled by the Enable property. Enabling and disabling of algorithm instances is a capability that is designed for a future release of Gaudi that will include an interactive scripting language.

The filter passed or failed logic for a particular Algorithm instance in a sequence may be inverted by specifying the :invert optional flag in the Members list for the Sequencer in the job options file.

A Sequencer will report filter success if either of its main and branch member lists succeed. The two cases may be differentiated using the Sequencer branchFilterPassed() boolean function. If this is set true, then the branch filter was passed, otherwise both it and the main sequence indicated failure.

The following examples illustrate the use of sequences with filtering and branching.

5.5.1 Filtering example

Listing 5.3 is an extract of the job options file of the AlgSequencer example: a Sequencer instance is created (line 2) with two members (line 5); each member is itself a Sequencer, implementing the sequences set up in lines 7 and 8, which consist of Prescaler, EventCounter and HelloWorld algorithms. The StopOverride property of the TopSequence is set to true, which causes both sequences to be executed, even if the first one indicates a filter failure.

The Prescaler and EventCounter classes are example algorithms distributed with the GaudiAlg package. The Prescaler class acts as a filter, passing the fraction of events specified by the PercentPass property (as a percentage). The EventCounter class just prints each event as it is encountered, and summarizes at the end of job how many events were seen. Thus at the end of job, the Counter1 instance will report seeing 50% of the events, while the Counter2 instance will report seeing 10%.

Note the same instance of the HelloWorld class appears in both sequences. It will be executed in Sequence1 if Prescaler1 passes the event. It will be executed in Sequence2 if Prescaler2 passes the event only if Prescaler1 failed it.
Listing 5.3 Example job options using Sequencers demonstrating filtering
1: ApplicationMgr.DLLs += { "GaudiAlg" };
2: ApplicationMgr.TopAlg = { "Sequencer/TopSequence" };
3:
4: // Setup the next level sequencers and their members
5: TopSequence.Members = {"Sequencer/Sequence1", "Sequencer/Sequence2"};
6: TopSequence.StopOverride = true;
7: Sequence1.Members = {"Prescaler/Prescaler1", "HelloWorld", "EventCounter/Counter1"};
8: Sequence2.Members = {"Prescaler/Prescaler2", "HelloWorld", "EventCounter/Counter2"};
9:
10: Prescaler1.PercentPass = 50.;
11: Prescaler2.PercentPass = 10.;

5.5.2 Sequence branching

Listing 5.4 illustrates the use of explicit branching. The BranchMembers property of the Sequencer specifies some algorithms to be executed if the algorithm that is the first member of the branch (which is common to both the main and branch membership lists) indicates a filter failure. In this example the EventCounter instance Counter1 will report seeing 80% of the events, whereas Counter2 will report seeing 20%.
Listing 5.4 Example job options using Sequencers demonstrating branching
1: ApplicationMgr.DLLs += { "GaudiAlg" };
2: ApplicationMgr.TopAlg = { "Sequencer" };
3:
4: // Setup the next level sequencers and their members
5: Sequencer.Members = {"HelloWorld", "Prescaler", "EventCounter/Counter1"};
6: Sequencer.BranchMembers = {"Prescaler", "EventCounter/Counter2"};
7:
8: Prescaler.PercentPass = 80.;

Listing 5.5 illustrates the use of inverted logic. It achieves the same goal as the example in Listing 5.4 through use of two sequences with the same instance of a Prescaler filter, but where the second sequence contains inverted logic for the single instance.
Listing 5.5 Example job options using Sequencers demonstrating inverted logic
1: ApplicationMgr.DLLs += { "GaudiAlg" };
2: ApplicationMgr.TopAlg = { "Sequencer/Seq1", "Sequencer/Seq2" };
3:
4: // Setup the next level sequencers and their members
5: Seq1.Members = {"HelloWorld", "Prescaler", "EventCounter/Counter1"};
6: Seq2.Members = {"HelloWorld", "Prescaler:invert", "EventCounter/Counter2"};
7:
8: Prescaler.PercentPass = 80.;
