Chapter 12
Tools and ToolSvc
12.1 Overview
Tools are light weight objects whose purpose is to help other components perform their work. A framework service, the ToolSvc, is responsible for creating and managing Tools. An Algorithm requests the tools it needs to the ToolSvc, specifying if requesting a private instance by declaring itself as the parent. Since Tools are managed by the ToolSvc, any component1 can request a tool. Algorithms, Services and other Tools can declare themselves as Tools parents.
In this chapter we first describe these objects and the difference between "private" and "shared" tools. We then look at the AlgTool base class and how to write concrete Tools.
In section 12.3 we describe the ToolSvc and show how a component can retrieve Tools via the service.
Finally we describe Associators, common utility GaudiTools for which we provide the interface and base class.
12.2 Tools and Services
As mentioned elsewhere Algorithms make use of framework services to perform their work. In general the same instance of a service is used by many algorithms and Services are setup and initialized once at the beginning of the job by the framework. Algorithms also delegate some of their work to sub-algorithms. Creation and execution of sub-algorithms are the responsibilities of the parent algorithm whereas the initialize() and finalize() methods are invoked automatically by the framework while initializing the parent algorithm. The properties of a sub-algorithm are automatically set by the framework but the parent algorithm can change them during execution. Sharing of data between nested algorithms is done via the Transient Event Store.
Both Services and Algorithms are created during the initialization stage of a job and live until the jobs ends.
Sometimes an encapsulated piece of code needs to be executed only for specific events, in which case it is desirable to create it only when necessary. On other occasions the same piece of code needs to be executed many times per event. Moreover it can be necessary to execute a sub-algorithm on specific contained objects that are selected by the parent algorithm or have the sub-algorithm produce new contained objects that may or may not be put in the Transient Store. Finally different algorithms may wish to configure the same piece of code slightly differently or share it as-is with other algorithms.
To provide this kind of functionality we have introduced a category of processing objects that encapsulate these "light" algorithms. We have called this category Tools.
Some examples of possible tools are single track fitters, association to Monte Carlo truth information, vertexing between particles, smearing of Monte Carlo quantities.
12.2.1 "Private" and "Shared" Tools
Algorithms can share instances of Tools with other Algorithms if the configuration of the tool is suitable. In some cases however an Algorithm will need to customize a tool in a specific way in order to use it. This is possible by requesting the ToolSvc to provide a "private" instance of a tool.
If an Algorithm passes a pointer to itself when it asks the ToolSvc to provide it with a tool, it is declaring itself as the parent and a "private" instance is supplied. Private instances can be configured according to the needs of each particular Algorithm.
As mentioned above many Algorithms can use a tool as-is, in which case only one instance of a Tool is created, configured and passed by the ToolSvc to the different algorithms. This is called a "shared" instance. The parent of "shared" tools is the ToolSvc.
12.2.2 The Tool classes
12.2.2.1 The AlgTool base class
The main responsibilities of the AlgTool base class (see Listing 12.1) are the identification of the tools instances, the initialisation of certain internal pointers when the tool is created and the management of the tools properties. The AlgTool base class also offers some facilities to help in the implementation of derived tools and management of the additional tools interfaces..
Constructor -
The base class has a single constructor which takes three arguments. The first is the type (i.e. the class) of the Tool object being instantiated, the second is the full name of the object and the third is a pointer to the IInterface of the parent component. The name is used for the identification of the tool instance as described below.The parent interface is used by the tool to access for example the outputLevel of the parent.
Access to Services -
A serviceLocator() method is provided to enable the derived tools to locate the services necessary to perform their jobs. Since concrete Tools are instantiated by the ToolSvc upon request, all Services created by the framework prior to the creation of a tool are available. In addition access to the message service is provided via the msgSvc() method. Both pointers are retrieved from the parent of the tool.
Properties -
A template method for declaring properties similarly to Algorithms is provided. This allows tuning of data members used by the Tools via JobOptions files. The ToolSvc takes care of calling the setProperties() method of the AlgTool base class after having instantiated a tool. Properties need to be declared in the constructor of a Tool. The property outputLevel is declared in the base class and is identically set to that of the parent component, unless specified otherwise in the JobOptions. For details on Properties see section 11.3.1.
IAlgTool Interface -
It consists of three accessor methods for the identification and managment of the tools: type(), name() and parent(). These methods are all implemented by the base class and should not be overridden. Two additional methods, initialize() and finalize(), allow concrete tools to be configured after creation and orderly terminated before deletion. An empty implementation is provided by the AlgTool base class and concrete tools need to implement these methods only when relevant for their purpose. The ToolSvc is responsible for calling these methods at the appropriate time.
Tools Interfaces -
Concrete tools must implement additional interfaces that will inherit from IAlgTool. When a component implements more that one interface it is necessary to "recognize" the various interfaces. This is taken care of by the AlgTool base class once the additional interface is declared by a concrete tool (or tools' base class). The declaration of the additional interface must be done in the constructor of a concrete tool and is done via the template method declareInterface.
12.2.2.2 Tools identification
A tool instance is identified by its full name. The name consist of the concatenation of the parent name, a dot, and a tool dependent part. The tool dependent part can be specified by the user, when not specified the tool type (i.e. the class) is automatically taken as the tool dependent part of the name. Examples of tool names are RecPrimaryVertex.VertexSmearer (a private tool) and ToolSvc.AddFourMom (a shared tool). The full name of the tool has to be used in the jobOptions file to set its properties.
12.2.2.3 Concrete tools classes
Operational functionalities of tools must be provided in the derived tool classes. A concrete tool class must inherit directly or indirectly from the AlgTool base class to ensure that it has the predefined behaviour needed for management by the ToolSvc.
Concrete tools must implement additional interfaces, specific to the task a tool is designed to perform. Specialised tools intended to perform similar tasks can be derived from a common base class that will provide the common functionality and implement the common interface. Consider as example the vertexing of particles, where separate tools can implement different algorithms but the arguments passed are the same. The ToolSvc interacts with specialized tools only through the additional tools interface, therefore the interface itself must inherit from the IAlgTool interface in order for the tool to be correctly managed by the ToolSvc.

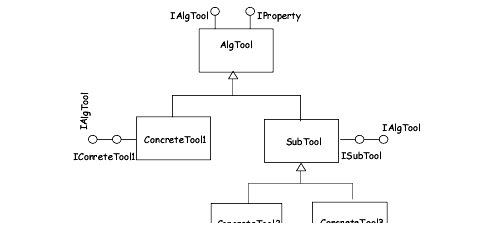

The inheritance structure of derived tools is shown in Figure 12.1. ConcreteTool1 implements one additional abstract interface while ConcreteTool2 and ConcreteTool3 derive from a base class SubTool that provides them with additional common functionality.
12.2.2.4 Implementation of concrete tools
Figure 12.1 Tools class hierarchy
An example minimal implementation of a concrete tool is shown in Listings 12.2, 12.3 and 12.4, taken from the LHCb ToolsAnalysis example application
The creation of concrete tools is similar to that of Algorithms, making use of a Factory Method. As for Algorithms, Tool factories enable their creator to instantiate new tools without having to include any of the concrete tools header files. A template factory is provided and a tool developer will only need to add the concrete factory in the implementation file as shown in lines 1 to 4 of Listing 12.4
In addition a concrete tool class must specify a single constructor with the same parameter signatures as the constructor of the AlgTool base class as shown in line 5 of Listing 12.3.
Below is the minimal checklist of the code necessary when developing a Tool:
1. Define the specific interface (inheriting from the IAlgTool interface).
2. Derive the tool class from the AlgTool base class
3. Provide the constructor
4. Declare the additional interface in the constructor.
5. Implement the factory adding the lines of code shown in Listing 12.4
6. Implement the specific interface methods.
In addition if a tool requires special initialization and termination you can implement the initialize and finalize methods.
12.3 The ToolSvc
The ToolSvc manages Tools. It is its responsibility to create tools, configure them, make them available to Algorithms or Services and terminate them in an orderly fashion before deleting them.
The ToolSvc verifies if a tool type is available and creates the necessary instance after having verified if it doesn't already exist. If a tool instance exists the ToolSvc will not create a new identical one but pass to the algorithm the existing instance. Tools are created on a "first request" basis: the first Algorithm requesting a tool will prompt its creation. The relationship between an algorithm, the ToolSvc and Tools is shown in Figure 12.2.

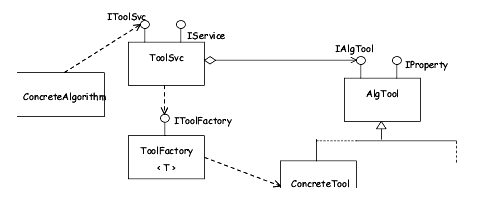

Figure 12.2 ToolSvc design diagram
Immediately after having created a tool, the ToolSvc will configure it by setting its properties and calling the tool initialize() method.
The ToolSvc will "hold" a tool until it is no longer used by any component or until the finalize() method of the tool service is called. Algorithms can inform the ToolSvc they are not going to use a tool previously requested via the releaseTool method of the IToolSvc interface. Before deleting the tools the ToolSvc will cleanly terminate them by calling their finalize() method.
The ToolSvc is created by default by the ApplicationMgr and algorithms wishing to use the service can do so via the algorithm toolSvc() accessor method. Services and AlgTools need to retrieve it using the serviceLocator() method of their respective base classes.
12.3.1 Retrieval of tools via the IToolSvc interface
The IToolSvc interface is the ToolSvc specific interface providing methods to retrieve tools. The interface has two retrieve methods that differ in their parameters signature, as shown in Listing 12.5
The arguments of the method shown in Listing 12.5, line 1, are the tool type (i.e. the class), the tool additional interface ID and the IAlgTool interface of the returned tool. In addition there are two arguments with default values: one is the IInterface of the component requesting the tool, the other a boolean creation flag. If the component requesting a tool passes a pointer to itself as the third argument, it declares to the ToolSvc that it is asking for a "private" instance of the tool. By default a "shared" instance is provided. In general if the requested instance of a Tool does not exist the ToolSvc will create it. This behaviour can be changed by setting to false the last argument of the method.
The method shown in Listing 12.5, line 2 differs from the one shown in line 1 by an extra argument, a string specifying the tool dependent part of the full tool name. This enables a component to request two separately configurable instances of the same tool.
When retriving concrete tools, it is recommended to use the two templated functions provided in the IToolSvc interface file which are shown in Listing 12.6.
The two template methods correspond to the IToolSvc retrieve methods but have the tool returned as a template parameter. Using these methods the component retrieving a tool avoids explicit dynamic-casting to specific additional interfaces or to derived classes.
Listing 12.7 shows an example of retrieval of a shared and of a common tool.
12.4 GaudiTools
Listing 12.7 Example of retrieval by an algortihm of a shared tool in line 4: and of a private tool in line 10:
1: // Example of tool belonging to the ToolSvc and shared between
2: // algorithms
3: StatusCode sc;
4: sc = toolsvc()->retrieveTool("AddFourMom", m_sum4p );
5: if( sc.isFailure() ) {
6: log << MSG::FATAL << " Unable to create AddFourMom tool" << endreq;
7: return sc;
8: }
9: // Example of private tool
10: sc = toolsvc()->retrieveTool("ImpactPar", m_ip, this );
11: if( sc.isFailure() ) {
12: log << MSG::FATAL << " Unable to create ImpactPar tool" << endreq;
13: return sc;
14: }
In general concrete tools are specific to applications or detectors' code but there are some tools of common utility for which interfaces and base classes can be provided. The Associators described below and contained in the GaudiTools package are one of such tools.
12.4.1 Associators
When working with Monte Carlo data it is often necessary to compare the results of reconstruction or physics analysis with the original corresponding Monte Carlo quantities on an event-by-event basis as well as on a statistical level.
Various approaches are possible to implement navigation from reconstructed simulated data back to the Monte Carlo truth information. Each of the approaches has its advantages and could be more suited for a given type of event data or data-sets. In addition the reconstruction and physics analysis code should treat simulated data in an identical way to real data.
In order to shield the code from the details of the navigation procedure, and to provide a uniform interface to the user code, a set of Gaudi Tools, called Associators, has been introduced. The user can navigate between any two arbitrary classes in the Event Model using the same interface as long as a corresponding associator has been implemented. Since an Associator retrieves existing navigational information, its actual implementation depends on the Event Model and how the navigational information is stored. For some specific Associators, in addition, it can depend on some algorithmic choices: consider as an example a physics analysis particle and a possible originating Monte Carlo particle where the associating discriminant could be the fractional number of hits used in the reconstruction of the tracks. An advantage of this approach is that the implementation of the navigation can be modified without affecting the reconstruction and analysis algorithms because it would affect only the associators. In addition short-cuts or complete navigational information can be provided to the user in a transparent way. By limiting the use of such associators to dedicated monitoring algorithms where the comparison between raw/reconstructed data and MC truth is done, one could ensure that the reconstruction and analysis code treat simulated and real data in an identical way.
Associators must implement a common interface called IAssociator. An Associator base class providing at the same time common functionality and some facilities to help in the implementation of concrete Associators is provided. A prototype version of these classes is provided in the current release of Gaudi.
12.4.1.1 The IAssociator Interface
As already mentioned Associators must implement the IAssociator interface.
In order for Associators to be retrieved from the ToolSvc only via the IAssociator interface, the interface itself inherits from the IAlgTool interface. While the implementation of the IAlgTool interface is done in the AlgTool base class, the implementation of the IAssociator interface is the full responsibility of concrete associators.
The four methods of the IAssociator interface that a concrete Associator must implement are show in Listing 12.8
Two i_retrieveDirect methods must be implemented for retrieving associated classes following the same direction as the links in the data: for example from reconstructed particles to Monte Carlo particles. The first parameter is a pointer to the object for which the associated Monte Carlo quantity(ies) is requested. The second parameter, the discriminating signature between the two methods, is one or a vector of pointers to the associated Monte Carlo objects of the type requested. Some reconstructed quantities will have only one possible Monte Carlo associated object of a certain type, some will have many, others will have many out of which a "best" associated object can be extracted. If one of the two methods is not valid for a concrete associator, such method must return a failure. The third and fourth parameters are the class IDs of the objects for which the association is requested. This allows to verify at run time if the objects' types are those the concrete associator has been implemented for.
The two i_retrieveInverse methods are complementary and are for retrieving the association between the same two classes but in the opposite direction to that of the links in the data: for example from Monte Carlo particles to reconstructed particles. The different name is intended to alert the user that navigation in this direction may be a costly operation
Four corresponding template methods are implemented in IAssociator to facilitate the use of Associators by Algorithms (see Listing 12.9). Using these methods the component retrieving a tool avoids some explicit dynamic-casting as well as the setting of class IDs. An example of how to use such methods is described in section 12.4.1.3.
12.4.1.2 The Associator base class
An associator is a type of AlgTool,so the Associator base class inherits from the AlgTool base class. Thus, Associators can be created and managed as AlgTools by the ToolSvc. Since all the methods of the AlgTool base class (as described in section 12.2.2.1) are available in the Associator base class, only the additional functionality is described here.
Access to Event Data Service -
An eventSvc() method is provided to access the Event Data Service since most concrete associators will need to access data, in particular if accessing navigational short-cuts.
Associator Properties -
Two properties are declared in the constructor and can be set in the jobOptions: "FollowLinks" and "DataLocation". They are respectively a bool with initial value true and a std::string with initial value set to " ". The first is foreseen to be used by an associator when it is possible to either follow links between classes or retrieve navigational short cuts from the data. A user can choose to set either behaviour at run time. The second property contains the location in the data where the stored navigational information is located. Currently it must be set via the jobOptions when necessary, as shown in Listing 12.10 for a particular implementation provided in the Associator example. Two corresponding methods are provided for using the information from these properties: followLinks() and whichTable().
Inverse Association -
Retrieving information in the direction opposite to that of the links in the data is in general a time consuming operation, that implies checking all the direct associations to access the inverse relation for a specified object. For this reason Associators should keep a local copy of the inverse associations after receiving the first request for an event. A few methods are provided to facilitate the work of Associators in this case. The methods inverseExist() and setInverseFlag(bool) help in keeping track of the status of the locally kept inverse information.The method buildInverse() has to be overridden by concrete associators since they choose in which form to keep the information and should be called by the associator when receiving the first request during the processing of an event.
Locally kept information -
When a new event is processed, the associator needs to reset its status to the same conditions as those after having been created . In order to be notified of such an incident happening the Associator base class implements the IListener interface and, in the constructor, registers itself with the Incident Service (see section 11.9 for details of the Incident Service). The associator's flushCache() method is called in the implementation of the IListener interface in the Associator base class. This method must be overridden by concrete associators wanting to do a meaningful reset of their initial status.
12.4.1.3 A concrete example
In this section we look at an example implementation of a specific associator. The code is taken from the LHCb Associator example, but the points illustrated should be clear even without a knowledge of the LHCb data model.
The AxPart2MCParticleAsct provides association between physics analysis particles (AxPartCandidate) and the corresponding Monte Carlo particles (MCParticle). The direct navigational information is stored in the persistent data as short-cuts, and is retrieved in the form of a SmartRefTable in the Transient Event Store. This choice is specific to AxPart2MCParticleAsct, any associator can use internally a different navigational mechanism. The location in the Event Store where the navigational information can be found is set in the job options via the "DataLocation" property, as shown in Listing 12.10.
Listing 12.10 Example of setting properties for an associator via jobOptions
ToolSvc.AxPart2MCParticleAsct.DataLocation = "/Event/Anal/AxPart2MCParticle";
In the current LHCb data model only a single MCParticle can be associated to one AxPartCandidate and vice-versa only one or no AxPartCandidate can be associated to one MCParticle. For this reason only the i_retrieveDirect and i_retrieveInverse methods providing one-to-one association are meaningful. Both methods verify that the objects passed are of the correct type before attempting to retrieve the information, as shown in Listing 12.11. When no association is found, a StatusCode::FAILURE is returned.
The i_retrieveInverse method providing the one-to-many association returns a failure, while a fake implementation of the one-to-many i_retrieveDirect method is implemented in the example, to show how an Algorithm can use such a method. In the AxPart2MCParticleAsct example the inverse table is kept locally and both the buildInverse() and flushCache() methods are overridden. In the example the choice has been made to implement an additional method buildDirect() to retrieve the direct navigational information on a first request per event basis.
Listing 12.12 shows how a monitoring Algorithm can get an associator from the ToolSvc and use it to retrieve associated objects through the template interfaces.
1 In this chapter we will use an Algorithm as example component requesting tools.
